Catch up & Iterative Visualizations

Brianna Heggeseth

Announcements

This week in MSCS

• Next Wednesday (4:45-7pm): MSCS Block Party! Outside OLRI near Tennis Courts

Class Masking Policy (Starting Today)

• Section 1: Masks required
• Section 2: Masks optional
• FYC: Masks optional

Taking Care of Each Other

• If you are not feeling well, stay home/in the dorm & rest.
• If you are exposed or a bit unwell, wear a mask.
• Masks are always welcome!

Sticky Points

This is the last formal day of visualizations before moving on to data wrangling.

What aspects are you getting stuck on?

• Discuss in groups
• Offer tips/resources to each other
• Share common sticky points with class

Monthly Learning Reflections

To practice self-assessment and self-reflection, I would like you to complete a monthly self-reflection about your learning in this class:

• by the end of Sept
• by the end of Oct
• by the end of Nov

Open the template file.

• What question do you have?

I’ll create individual versions of this document and share them with you. You can add your reflections in your individual document. This will only be shared between you and me.

ggplot review

For each function, tell me what it does and what types of input arguments it takes.

• ggplot()
• geom_point()
• aes()
• scale_color_manual()
• ggmap()
• geom_histogram()
• geom_density()
• labs()

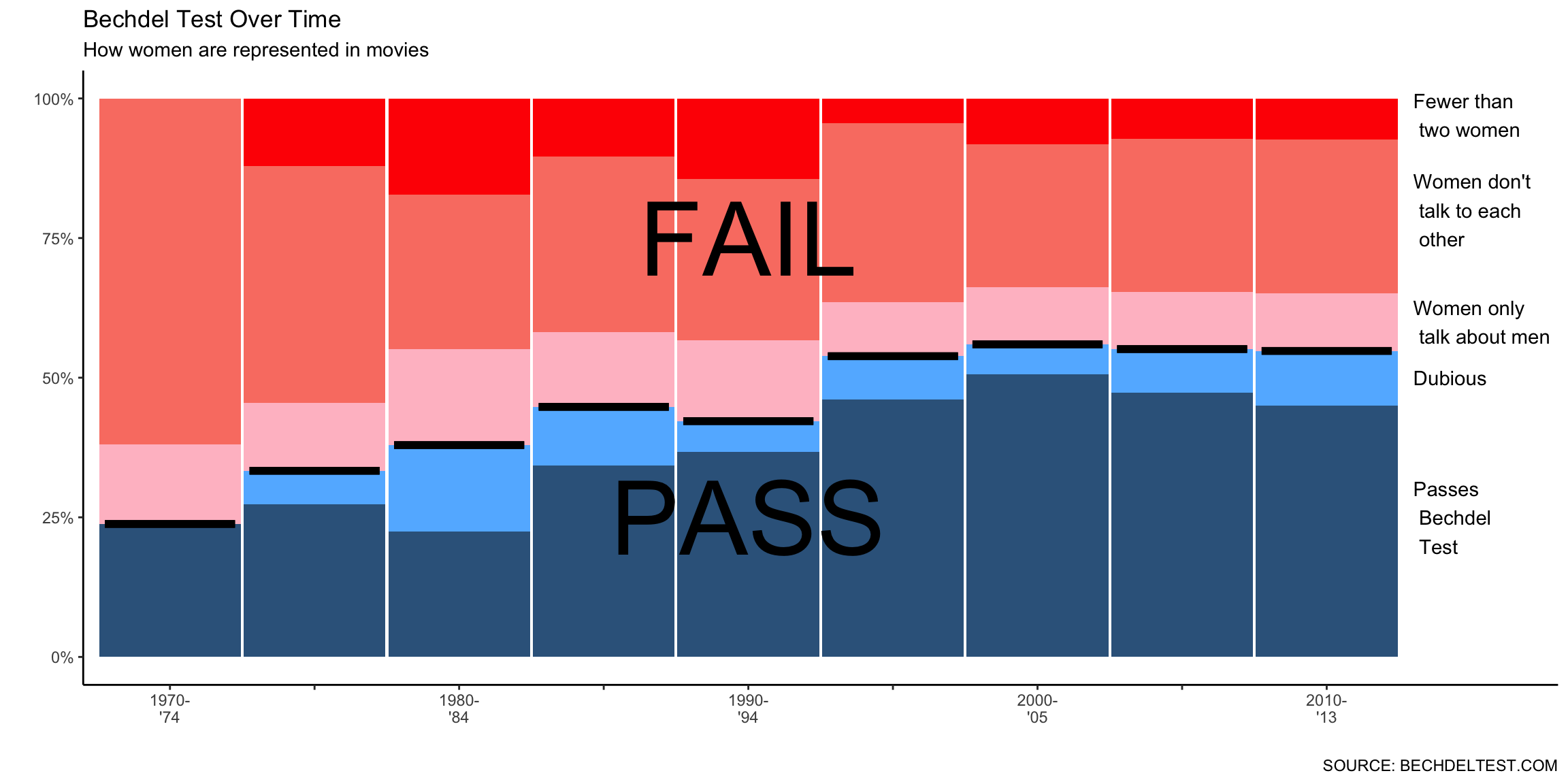

ggplot example

yvalues <- newbechdel %>%
  group_by(yearCat) %>%
  count(pass = clean_test %in% c('dubious','ok')) %>%
  mutate(prop = n/sum(n)) %>% filter( pass == TRUE) %>% pull(prop)

bars2 <- data.frame(bars = c(sapply(yvalues, function(x) c(NA,x,rep(NA,3)))) ,yearCat = rep(levels(newbechdel$yearCat),each=5), clean_test = rep(levels(newbechdel$clean_test), 9))

ggplot(newbechdel,
       aes(
         x = yearCat,
         fill = clean_test)) +
  geom_bar(
    position = "fill",
    width = .98) +
  scale_fill_manual(
    values = c("red","salmon","pink","steelblue1","steelblue4"),
    guide = 'none') +
  labs(
    caption = 'SOURCE: BECHDELTEST.COM',
    title='Bechdel Test Over Time',
    subtitle = 'How women are represented in movies') +
  scale_y_continuous(
    name = '',
    breaks = seq(0,1,by=.25),
    labels = scales::percent) +
  scale_x_discrete(
    name = '',
    labels = c("1970-\n'74","","1980-\n'84","","1990-\n'94","","2000-\n'05","","2010-\n'13")) +
  geom_errorbar(
    data = bars2,
    mapping = aes(y=bars,ymin=bars,ymax=bars),
    color = "black",
    size = 2) +
  annotate(
    'text',
    x = 9.6,
    y = rev(c(0.25,.5,.6,.8,.97)),
    label = c('Fewer than\n two women',"Women don't\n talk to each\n other", 'Women only\n talk about men','Dubious','Passes\n Bechdel\n Test'),
    hjust = 0) +
  annotate(
    'text',
    x = c(5,5),
    y = c(.25,.75),
    label=c('PASS','FAIL'),
    hjust = .5,
    size=20) +
  coord_cartesian(
    xlim=c(1,10),
    clip="off") +
  theme_classic()

Iterative Viz

Iterative Viz Instructions

Steps:

1. Complete TidyTuesday 1, 2, 3, or 4!
2. Submit one of those graphics (no need to make changes) to Viz 0 assignment by Sept 30
3. Revise/update your graphic based on feedback and submit for Viz 1 by Oct 31
4. Revise/update your graphic based on feedback and submit for Viz 2 by Nov 30

Creativity is highly encouraged and increased complexity (that increases the effectiveness of the visual) is expected.

Rest of Class

Choose your work:

• Assignments 4 (due Sunday) or 5 (Tuesday)
• Tidy Tuesday 3 (due today)
