3  Advanced Data Visualization in ggplot2

3.1 Settling In

Choose a card to determine where you sit today. I’ll continue to do this for the first few weeks so that you can meet more students in the class.

  • Introduce yourselves
  • Check in as human beings

Download a template Quarto file to start from here. Put this file in a folder called adv_ggplot within a folder for this course.

3.2 Data Storytelling Moment

Go to https://fanstudy.byspotify.com/edition/spotify-playlists

  • What is the data story?
  • What is effective?
  • What could be improved?

3.3 Learning goals

After this lesson, you should be able to:

  • Navigate the ggplot2 reference page to find the functions needed to create a desired visualization
  • Use the information on a function help page to construct desired plot features
    • Scan the information in the Usage section to identify function arguments that must be set
    • Understand how the function arguments work by using information in the Arguments section
    • Use the information in the the Aesthetics and Examples sections to control plot appearance
  • Identify when it would be necessary to use different data arguments within the ggplot() and geom_() layers





3.4 Goal

The following exercise is inspired by an assignment from the Concepts in Computing with Data course at UC Berkeley taught by Dr. Deborah Nolan.

We are going to recreate this NYT visualization on record setting temperatures by expanding our ggplot2 toolbox using data from San Francisco (SFO) in 2011.

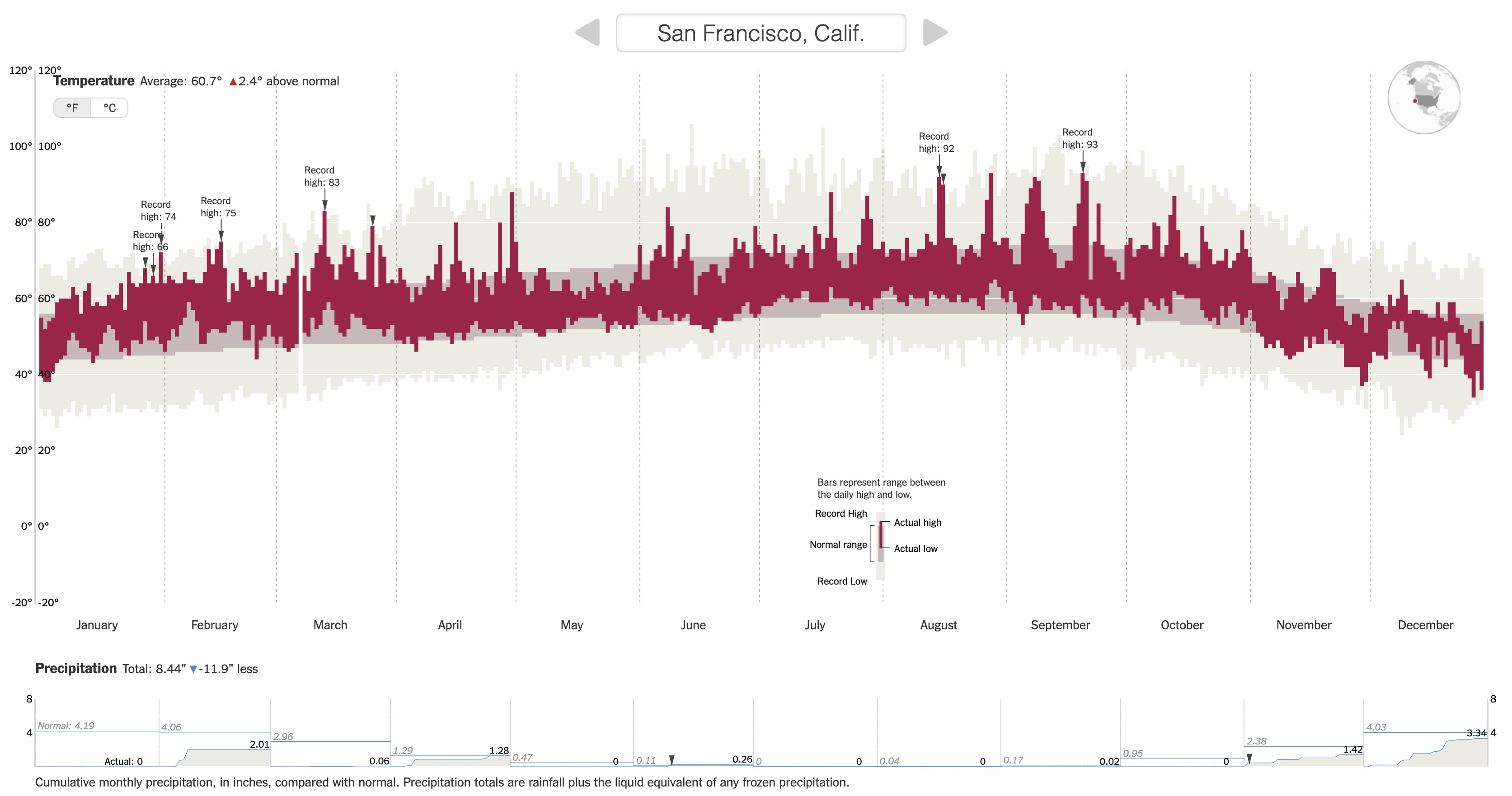

Screenshot of NYTimes visualization from 2015

3.5 Setup

First load the tidyverse package, and read in the San Francisco weather data.

library(tidyverse)
weather <- read_csv("https://mac-stat.github.io/data/sfo_weather.csv")

3.6 Data Codebook

You will need to refer to the variable codebook below throughout this activity.

  • Month: Month of the year (1-12)
  • Day: Day within the month (1-31)
  • Low/High: Low/high temperature this day
  • NormalLow/NormalHigh: Typical low/high temperature for this day of the year
  • RecordLow/RecordHigh: Record low/high temperature for this day of the year
  • LowYr/HighYr: Year in which the record low/high was observed
  • Precip: Amount of precipitation (inches) this day
  • RecordPrecip: Record amount of precipitation for this day of the year
  • PrecipYr: Year in which the record precipitation was observed
  • date: The actual date in 2011 for this day in YYYY-MM-DD format
  • dateInYear: What day of the year is it? (1-365)
  • Record: Logical (TRUE/FALSE) indicating whether this day had a high temperature record
  • RecordText: Text that displays the record high for this day ("Record high: ##")
  • RecordP: Logical (TRUE/FALSE) indicating whether this day had a precipitation record
  • CulmPrec: Cumulative precipitation for the month up to this day



3.7 Class Exercise 1

Examine the temperature visualization in the original NYT article.

Discuss the following two aspects with your group:

Data storytelling

  • Relate the intro paragraph (“Scientists declared that 2015 was Earth’s hottest year on record…”) to the design of the visualization: Based on the intro paragraph, what key message/claim does NYT want readers to be able to explore? How did this goal inform what information is displayed in the visualization?

Aesthetic mapping

  • What specific variables (from the codebook) underlie the visualization, and how do they map to aesthetics of the visual elements (e.g., position, size, shape, and color of the glyphs)?



3.8 Class Exercise 2

Documentation / Reference Pages

We can explore the “Geoms” section of the ggplot2 reference page to find a geom that corresponds to the visual elements in the temperature plot.

Using both the small example visuals on the right and the names of the geom’s, brainstorm some possibilities for geom’s we might use to recreate the temperature visualization.



3.9 Note: Documentation / Reference Pages

We need to explore further by opening up the geom reference pages to understand if a particular geom is suitable for our task. We’ll look at the geom_point documentation page to learn the process for reading a documentation page.

When looking at a help page, it is useful to first look at the Usage and Arguments sections.

. . .

The Usage section shows all of the possible inputs (arguments) to the geom–these are all of the ways that a geom can be customized. Just looking at the argument names can help give a hint as to what arguments might fit our needs.

. . .

The Arguments section explains in detail what each argument does and the possible values the argument can take. The mapping, data, and ... arguments will be the most commonly used by far.

. . .

  • mapping: This is the argument that is being used when you specify which variables should link or map to the plot aesthetics (the code inside aes()).
  • data: This is where you specify the dataset containing the variables that the geom is using.
  • ...: You will tend to use this for fixed aesthetics (ones that don’t correspond to a variable). For example, this is where you can set the color of all points (e.g., with color = "red") or the size of all points (e.g., with size = 3).

A note about the data argument: Previously you have used one dataset per plot by specifying that as the first argument of ggplot().

Example of multiple data sets passed into ggplot

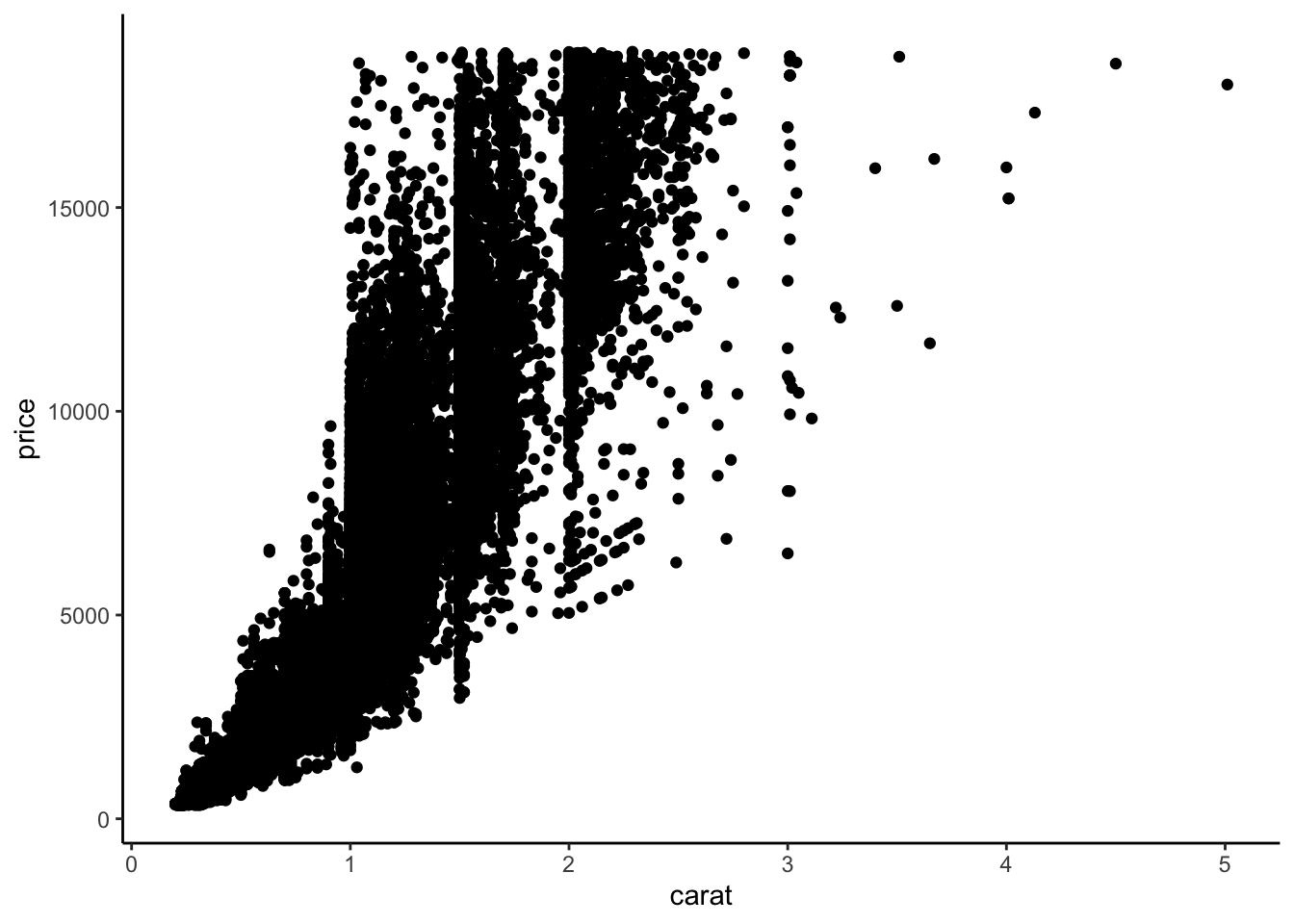

For example, the code below makes a scatterplot of price vs. carat in the diamonds dataset, and the only data argument is in ggplot() (none in geom_point()).

data(diamonds)
head(diamonds)
# A tibble: 6 × 10
  carat cut       color clarity depth table price     x     y     z
  <dbl> <ord>     <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
1  0.23 Ideal     E     SI2      61.5    55   326  3.95  3.98  2.43
2  0.21 Premium   E     SI1      59.8    61   326  3.89  3.84  2.31
3  0.23 Good      E     VS1      56.9    65   327  4.05  4.07  2.31
4  0.29 Premium   I     VS2      62.4    58   334  4.2   4.23  2.63
5  0.31 Good      J     SI2      63.3    58   335  4.34  4.35  2.75
6  0.24 Very Good J     VVS2     62.8    57   336  3.94  3.96  2.48
ggplot(diamonds, aes(x = carat, y = price)) +
    geom_point() +
    theme_classic()

# Note that we can make the same plot by specifying the argument names explicitly:
ggplot(data = diamonds, mapping = aes(x = carat, y = price)) +
    geom_point() +
    theme_classic()

Sometimes we may want to use more than one dataset in a plot. For example, we have a separate dataset that contains average prices of diamonds by carat:

head(diamonds_avg_price)
# A tibble: 6 × 2
  carat avg_price
  <dbl>     <dbl>
1  0.2       365.
2  0.23      486.
3  0.26      551.
4  0.29      601.
5  0.32      720.
6  0.35      801.

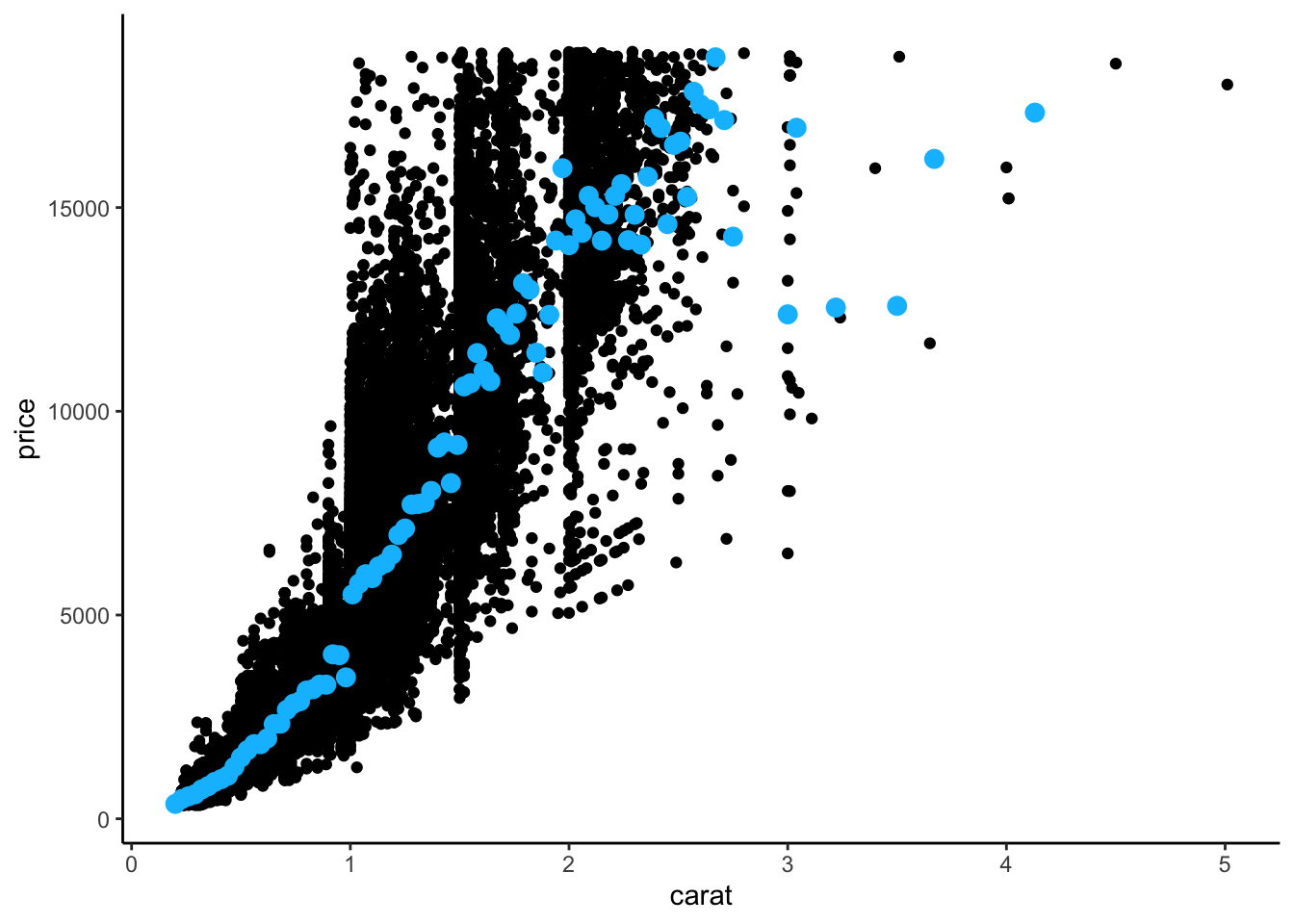

We can use this separate diamonds_avg_price dataset in the geom_point() layer to add average price information to our scatterplot:

ggplot(diamonds, aes(x = carat, y = price)) +
    geom_point() +
    geom_point(data = diamonds_avg_price, aes(x = carat, y = avg_price), color = "deepskyblue", size = 3)

. . .

The Aesthetics section of a geom documentation page gives information on how the visual elements of the geom correspond to data.

For example, the geom_point documentation page shows that the familiar x and y aesthetics are available. It also shows some new aesthetics like stroke.

We can use the same process to look at the geom_linerange documentation page and start off our temperature visualization with the record lows and highs (light tan color: #ECEBE3):

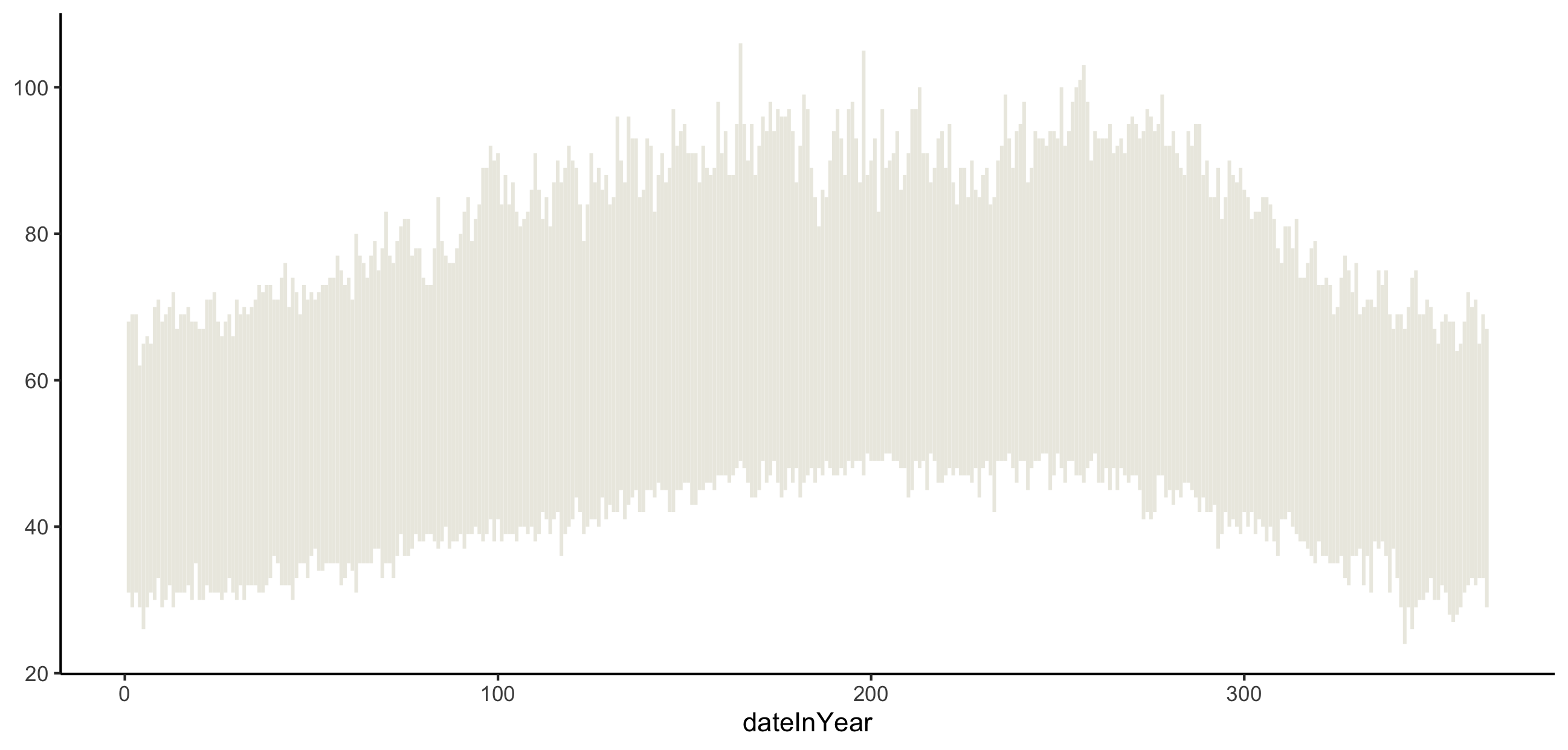

SFO weather records in 2011
ggplot(weather) +
    geom_linerange(___) +
    theme_classic()
Keyboard shortcuts

As you work on this plot, try to use some new keyboard shortcuts. Focus on the following:

  • Insert code chunk: Ctrl+Alt+I (Windows). Option+Command+I (Mac).
  • Run current code chunk: Ctrl+Shift+Enter (Windows). Command+Shift+Return (Mac).
  • Run current line/currently selected lines: Ctrl+Enter (Windows). Command+Return (Mac).



3.10 Class Exercise 3

Add to your temperature visualization to also display the usual temperatures (NormalLow and NormalHigh), and actual 2011 temperatures (Low and High). Your plot should look like the one below. The tan color for the usual temperatures is "#C8B8BA", and the red color for the actual temperatures is "#A90248".

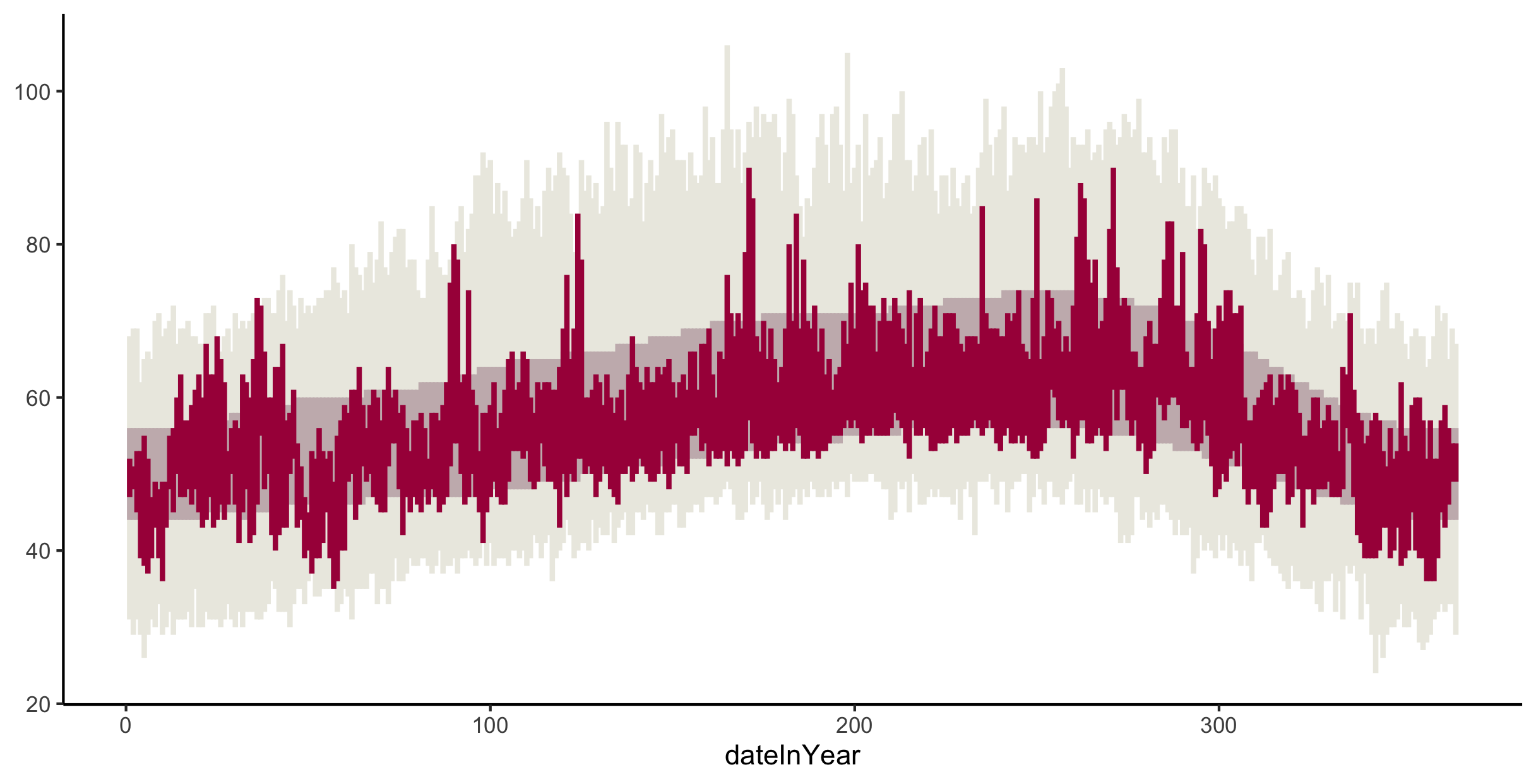

SFO observed, average, and record daily temperatures in 2011



Note: If you’d like finer control of the width of these lines/rectangles, check out the geom_rect documentation page.

3.11 Class Exercise 4

Let’s now try to recreate the visual demarcations of the months by adding vertical lines separating the months.

Brainstorm with your groups how we might draw those vertical lines.

  • What geom might we use?
  • What subset of the data might we use in that geom layer to draw lines only at the month divisions?



3.12 Class Exercise 5

Now let’s change the x-axis labels so that the month names display in the center of each month’s slice of the plot. (Note that R has built-in variables called month.abb and month.name that contain abbreviated and full month names.)

We will explore two different approaches to figuring out this new challenge: Google search and AI.

  • Google: Start by just using Google search queries. Collaborate with your group to try to word your search queries as carefully as possible (using the jargon that is most likely to return the most relevant results). Record search queries and your thought process in selecting which search results to look at first.

  • AI: Next use ChatGPT or Gemini. Collaborate with your group to brainstorm a series of prompts that will most efficiently get you the desired results. Record the chat prompts used and output given. Evaluate the output. Do you fully understand the code generated? How can you tell that the generated code is correct?

After we debrief on these approaches, we’ll finalize this part of the plot together.





3.13 Group work

Work using paired programming to create a precipitation plot that looks like the following. Share the code with each other (via Github or Slack) before your leave.

  • The triangles point to precipitation records. Refer to the Data Codebook above for the RecordP variable.
  • The numbers on the plot indicate the total precipitation for the month. Do some searching about the hjust and vjust options to adjust the alignment of the numbers.
  • The blue and tan colors are "#32a3d8" and "#ebeae2".

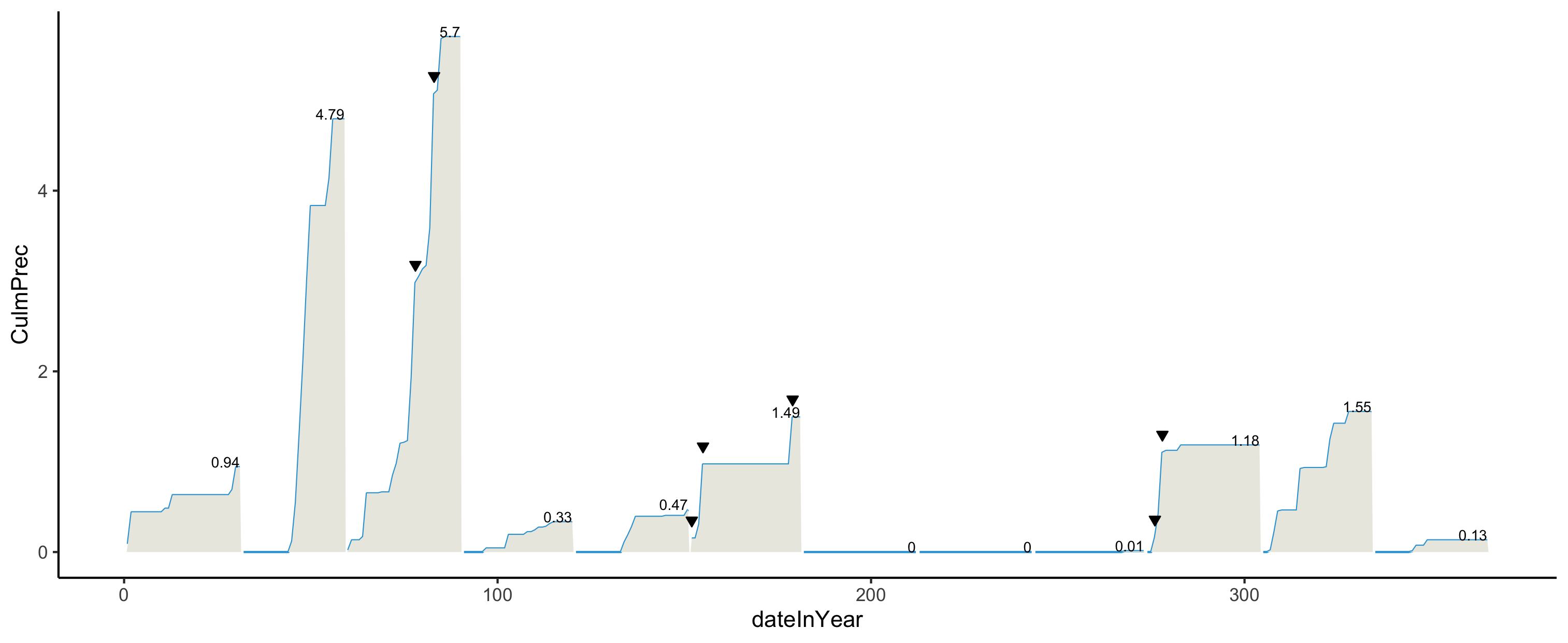

SFO precipitation in 2011
Reminder: Record and observe

As you work through this new phase of the plot, makes notes in your personal class journal about anything that you tried that didn’t work the way you wanted: geoms that you tried but didn’t make the right plot, faulty aesthetic mappings, error messages, and warning messages.

Also be aware of your comforts and discomforts in this collaborative environment. Pay attention to the comforts and discomforts of your groupmates.

We’ll have a few minutes at the end of class to reflect holistically on today’s activity.


If you have time, keep working with each other on your plots to get them to look as below (which shows your goal for HW1 Part 1).

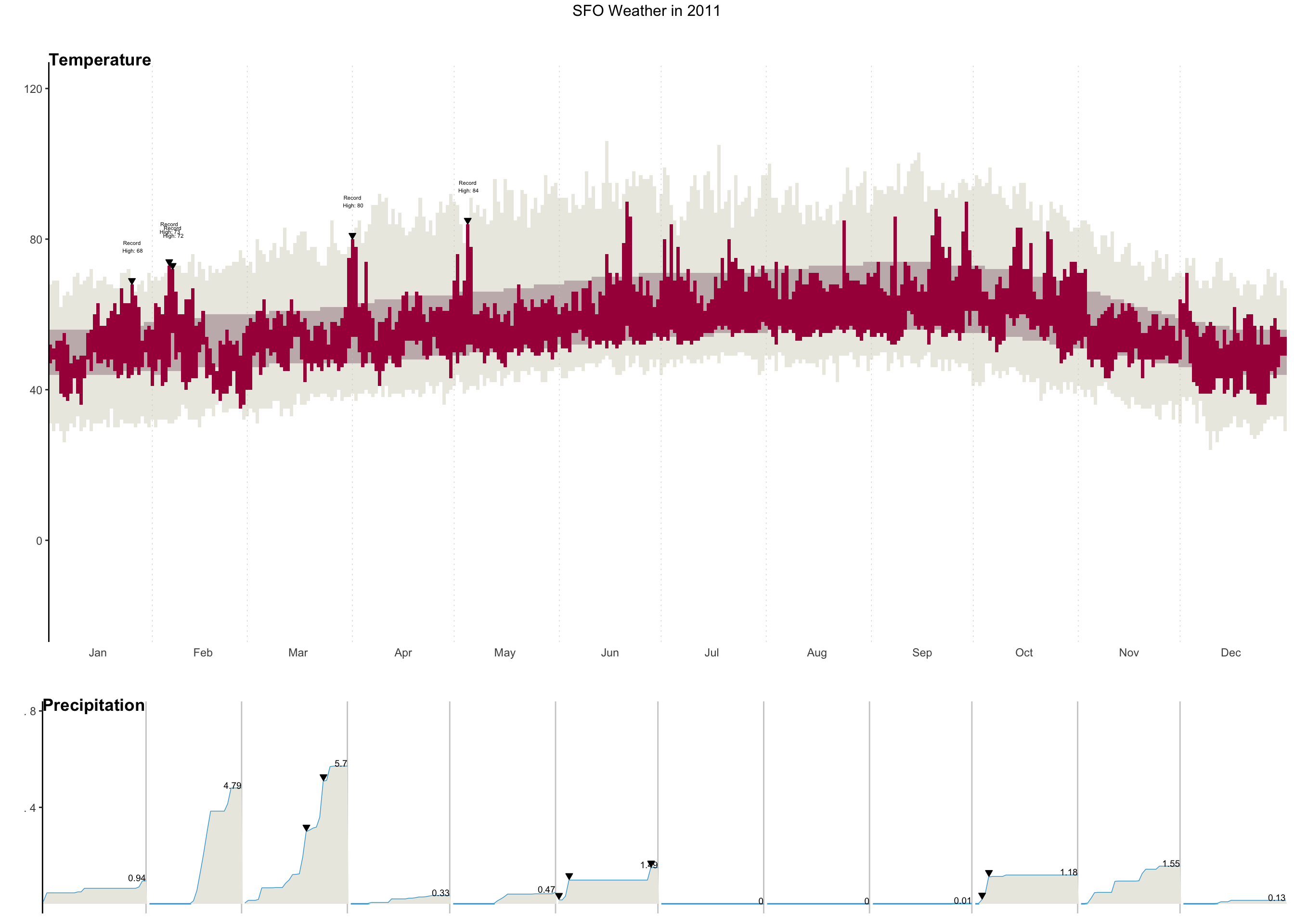

SFO weather in 2011 (minimum requirements for HW1 Part 1 submission)
Reminder: Record and observe

As you work to finalize your plots, try as best you can to observe your strategies for getting unstuck–what sorts of things do you try? Some ideas:

  • Draw the part of your plot that you expect your code will create. Then compare to what actually does happen.
  • Consult peers for different Google queries
  • Look at function documentation by entering ?function_name in the Console. See what arguments might be tweaked to get what you want.





3.14 Reflect

In terms of both coding and collaboration, what challenges did you face today? What did you do to address those challenges? What would you like to try for next time?





3.15 Homework 2

Homework 2 Part 1 involves finishing this NYT visualization recreation and is part of Homework 2.

3.16 After Class

  • Take a look at the Schedule page to see how to prepare for the next class
  • Look through your peers’ introductions in the #introductions channel on Slack to see who you connect with and who might be a potential good project partner.
    • If you have not already introduced yourself, please post an introduction so that others can connect with you.
  • Finish Homework 1 and start Homework 2
